Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
|
Centrifugal Pump
|
||||
|

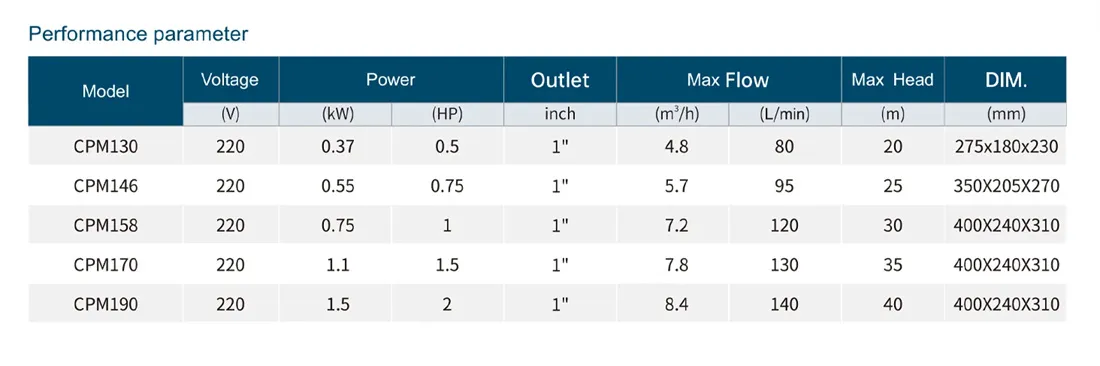

Flow Range
|
80 L/min to 140L/min
|
|||
|
Head Range
|
20 m to 40 m
|
|||
|
Power Range
|
0.5hp to 2hp
|
|||
Material ：
*Pump body : Cast iron
*Pump cover : Cast iron
*Motor housing : Aluminum
*Impeller : Brass or PPO
*Motor shaft : Carbon steel or AlS| 304 SS
*Mechanical seal : Ceramic or Graphite
Motor :
*Two-pole induction motor(n=2850 r.p.m)
*Insulation Class F
*ProtectionlP44
*Continuous service S1
*Thermal protector for single phase
*Single-phase 220V 50Hz/60Hz
Three-phase 380V 50Hz /60Hz
Operating conditions:
*Liquid temperature up to 60°C *Ambient temperature up to 40℃ *Total suction lift up to 8m
Accessories
Product packaging
Applications
