Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
|

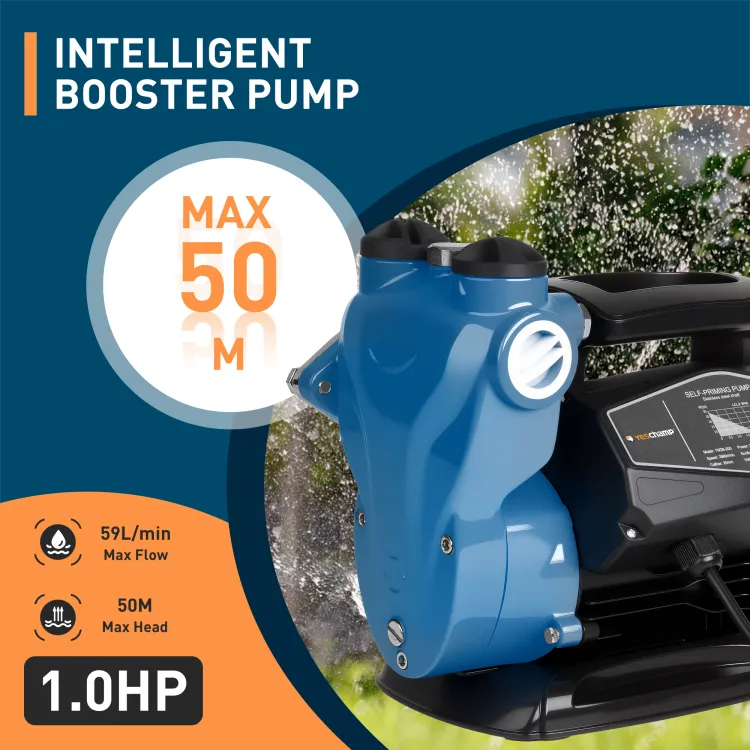

Self-Priming Pump
|
||||
|
Flow Range
|
34 L/min to 59L/min
|
|||
|
Head Range
|
27 m to 50 m
|
|||
|
Power Range
|
0.27hp to 1.1hp
|
|||
Material ：
*Pump body:Cast iron,with brass/AlSl304 SS insert (if request).
*Pump cover: Cast iron (electrophoresis),with AlSl304SS insert
*Motor housing: Aluminum
*Impeller: Brass
*Motor shaft: Carbon steel,AlS| 304 SS if request.
*Mechanical seal: Ceramic/Graphite
Motor :
*Two-pole induction motor(n=2850 r.p.m)
*Insulation Class F
*ProtectionlP44
*Continuous service S1
*Thermal protector
*Single-phase 220V/50Hz,60Hz if request
Operating conditions:
*Liquid temperature up to 60°C
*Ambient temperature up to 40℃
*Total suction lift up to 9m
Accessories
Product packaging
Applications
